Screen Enclosure

ASD

Process

Order using

ASD cover sheet⁠

⁠

Example filled out cover sheet

⁠

ASD_Cover_Sheet.pdf⁠

⁠

Enter wind speed

Wind speed information

Look up wind speed by address using this

link⁠

⁠

Look under ASCE 7-10, Risk Category 1. Round up to 110, 120, or 130. In the example below the wind speed would be 120 mph - rounding up from 116 mph.

⁠

⁠

Create screen layout and elevation drawing

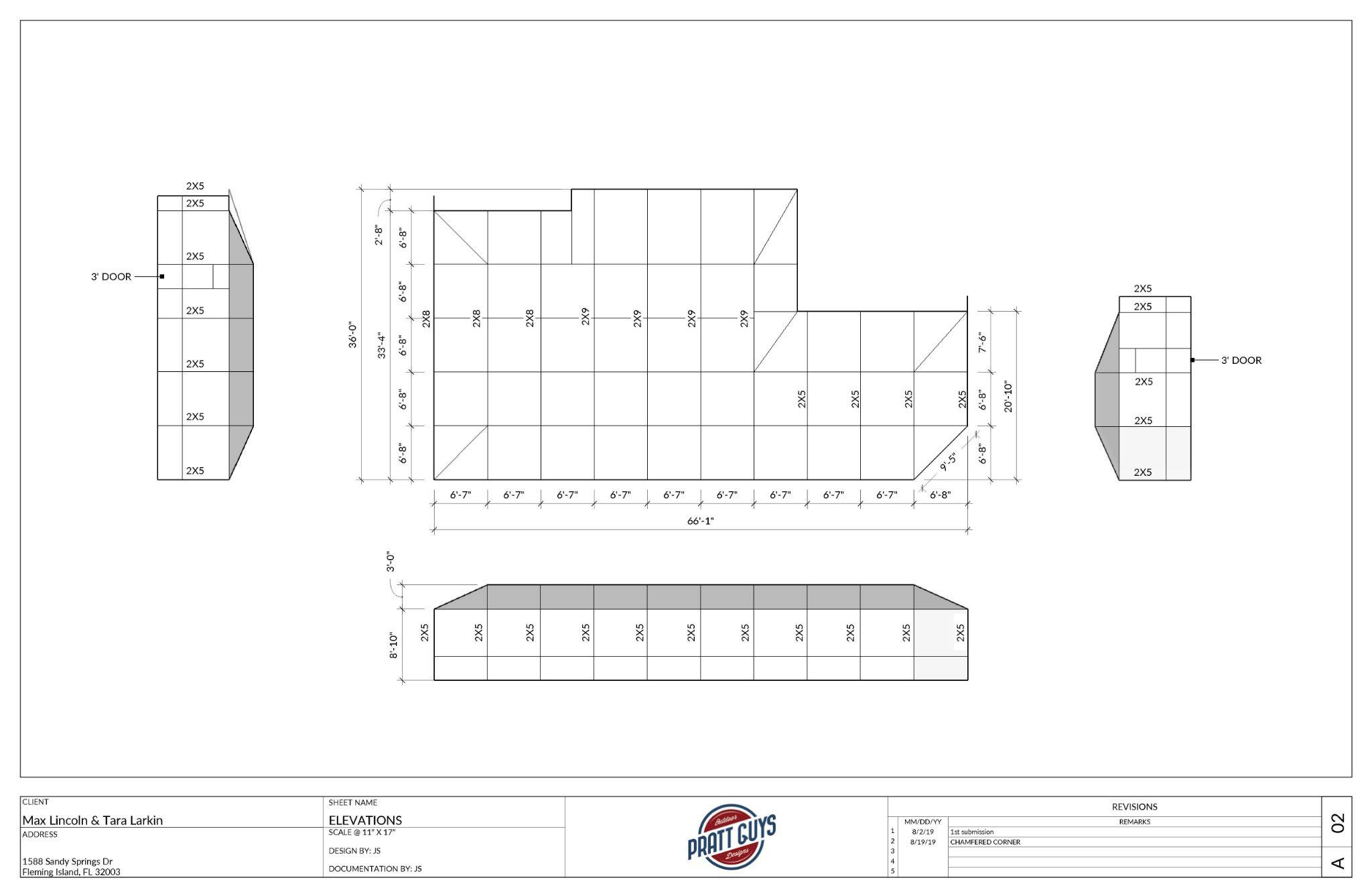

Example layout and elevation drawing

⁠

⁠

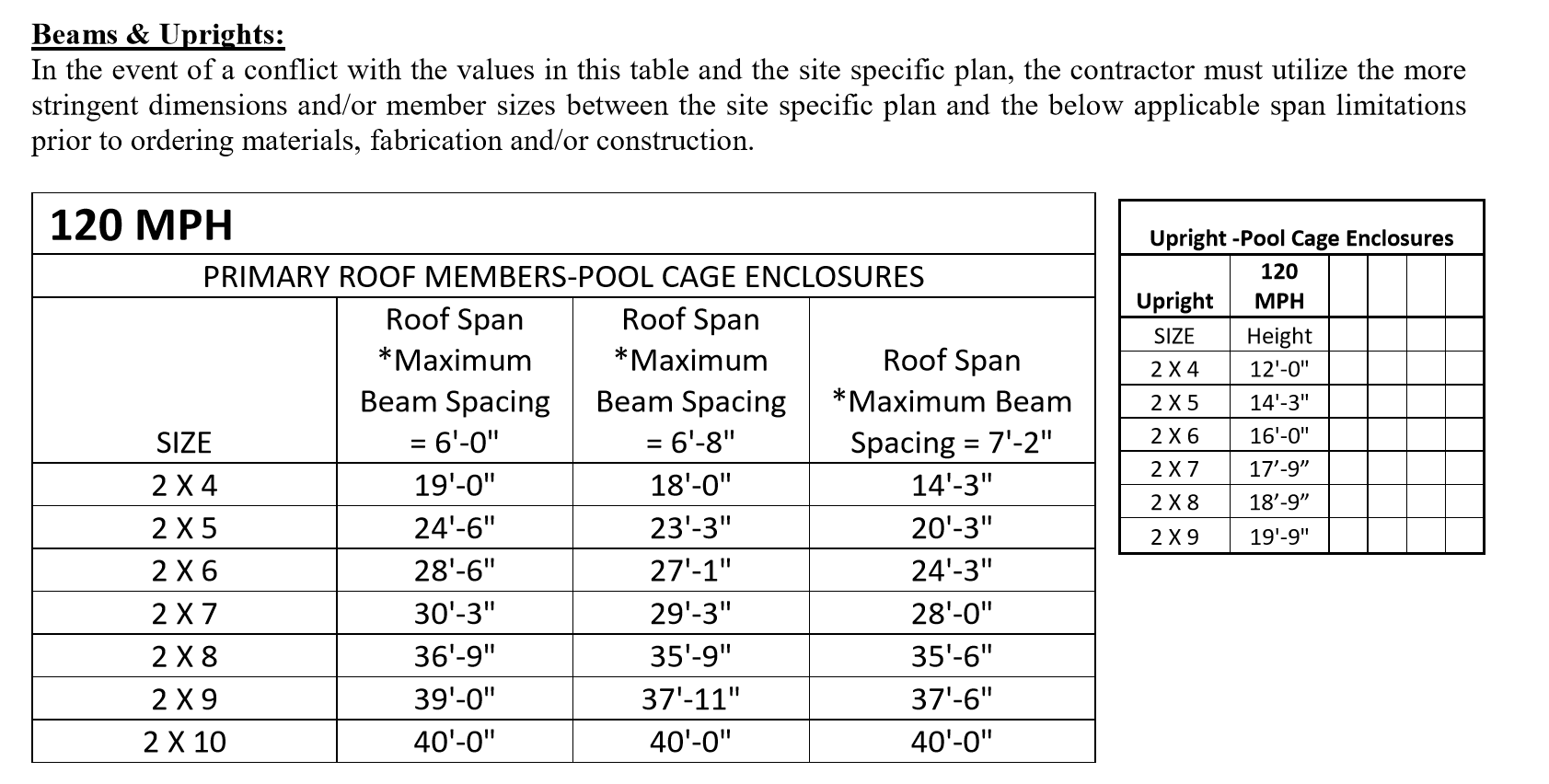

Refer to span chart for upright and beam dimensions

⁠

⁠

Span notes

Subtract 7" for gutter

Subtract 4" for outside offset

Ask Ryan Hampton to review the drawing

Email engineering request to:

aluminumscreendesign@yahoo.com⁠

⁠

Request digital prelims before accepting final engineering and paying engineering fee

Example ASD engineering

⁠

2 - GENERAL.PDF⁠

⁠

3.2 - PLAN VIEW.pdf⁠

⁠

4 - PLAN DESIGN.pdf⁠

⁠

5 - PLAN DESIGN.pdf⁠

⁠

Forward prelims to Ryan Hampton for approval

Pay on their website

Select Eseal $157

⁠

⁠
