Cabana

General

When possible match the existing house roof pitch when designing cabana roof

Foundation

Use Footings With A Pedestal and Pratt Post Base in the following conditions:
The structure is a cabana
The structure is freestanding
The structure does NOT have angle brackets
The posts are not wrapped with a cladding such as Hardie Board trim.
The posts will be marine grade and embedded in that case.
Example engineering:
⁠
22-1510 Prameshuber Cabana (25-10x13-4) E-Seal 02-15-2023.pdf
⁠
⁠

⁠
⁠
⁠
Footing with Pedestal and Pratt Post Base

⁠
image (59).png
⁠
⁠
Pratt Post Base Detail

Use Footings With ABU in the following conditions:
The structure is a cabana and,
The structure is freestanding and,
The structure HAS angle brackets and,
The posts are not wrapped with a cladding such as Hardie Board trim.
The posts will be marine grade and embedded in that case.
Example engineering:
⁠
22-1166 Dellbrugge Pergola E-SEAL 10-19-2022.pdf
556.5 kB
⁠
⁠

⁠
⁠
⁠
Footing with ABU
Use Embedment in the following conditions:
The structure is a cabana and,
The posts will be wrapped with a cladding such as Hardie Board trim. The posts will be marine grade.
Dark stain can be used on marine grade as well








⁠
⁠
⁠

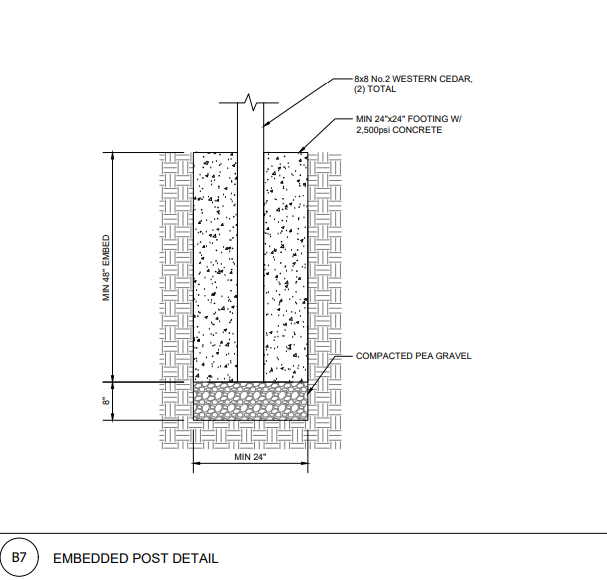

Embedded Post

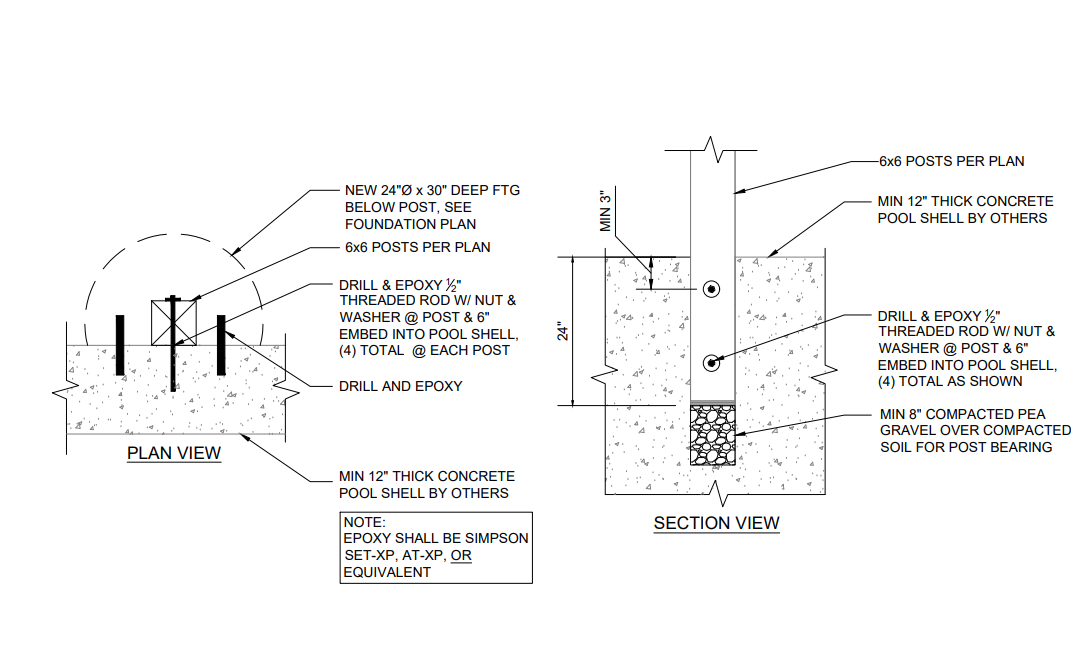

Drill & Epoxy Threaded Rods to connect a post to the side of a pool shell
⁠
Screenshot 2023-05-03 132231.jpg
⁠
⁠

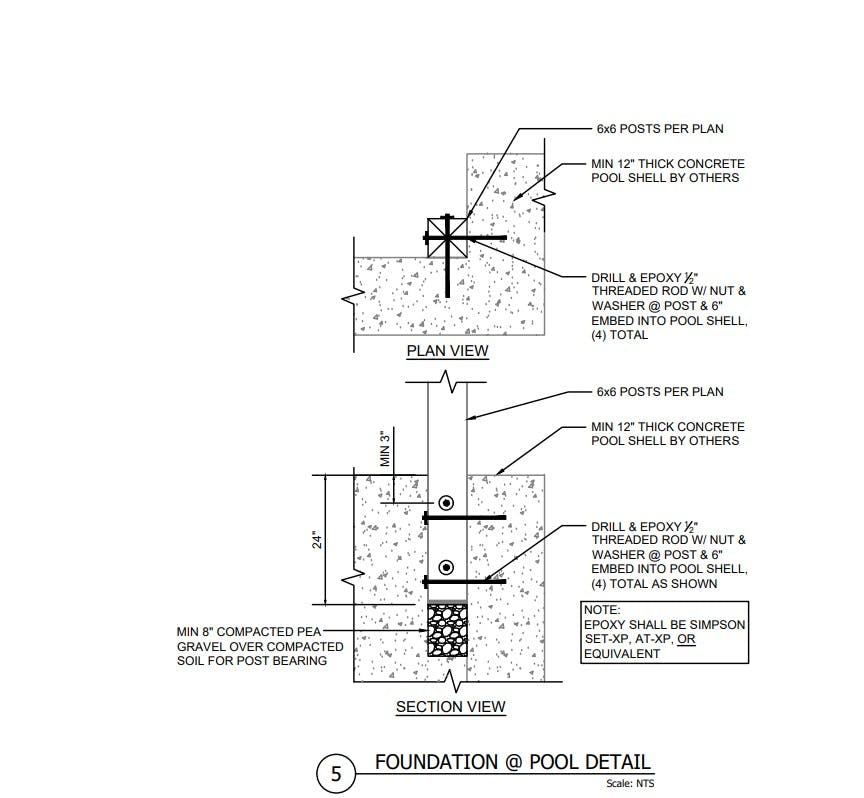

Post Attached to Pool Shell at Harpin Project
⁠
⁠
⁠
Post Attached to Pool Shell at Daigle Project

Roof

What is max span for cedar beam?
Exposed rafters do not work with LVL’s wrapped in hardie
Purlins are not required for Thatch Roofing. Especially avoid using purlins with round timber rafters. You will need a runner at the bottom of the rafters.

⁠
⁠
⁠
