Notes

tGood company for reference:

SCREENIT INC⁠

⁠

Every door on the screen enclosure requires a landing pad - minimum size = 3'x3'

Avoid putting screen enclosure directly on top of spa wall. The water, heat, and salt corrode the bottom channel. Quinones project example

Call Ryan Hampton about any screen remodels before finalizing sale or beginning design

Doggie doors are available for $400 installed. Not to code for enclosures with pools.

⁠

Hand and Guard Rails⁠

requirements still apply to screen enclosures. A reinforced chair rail is used.

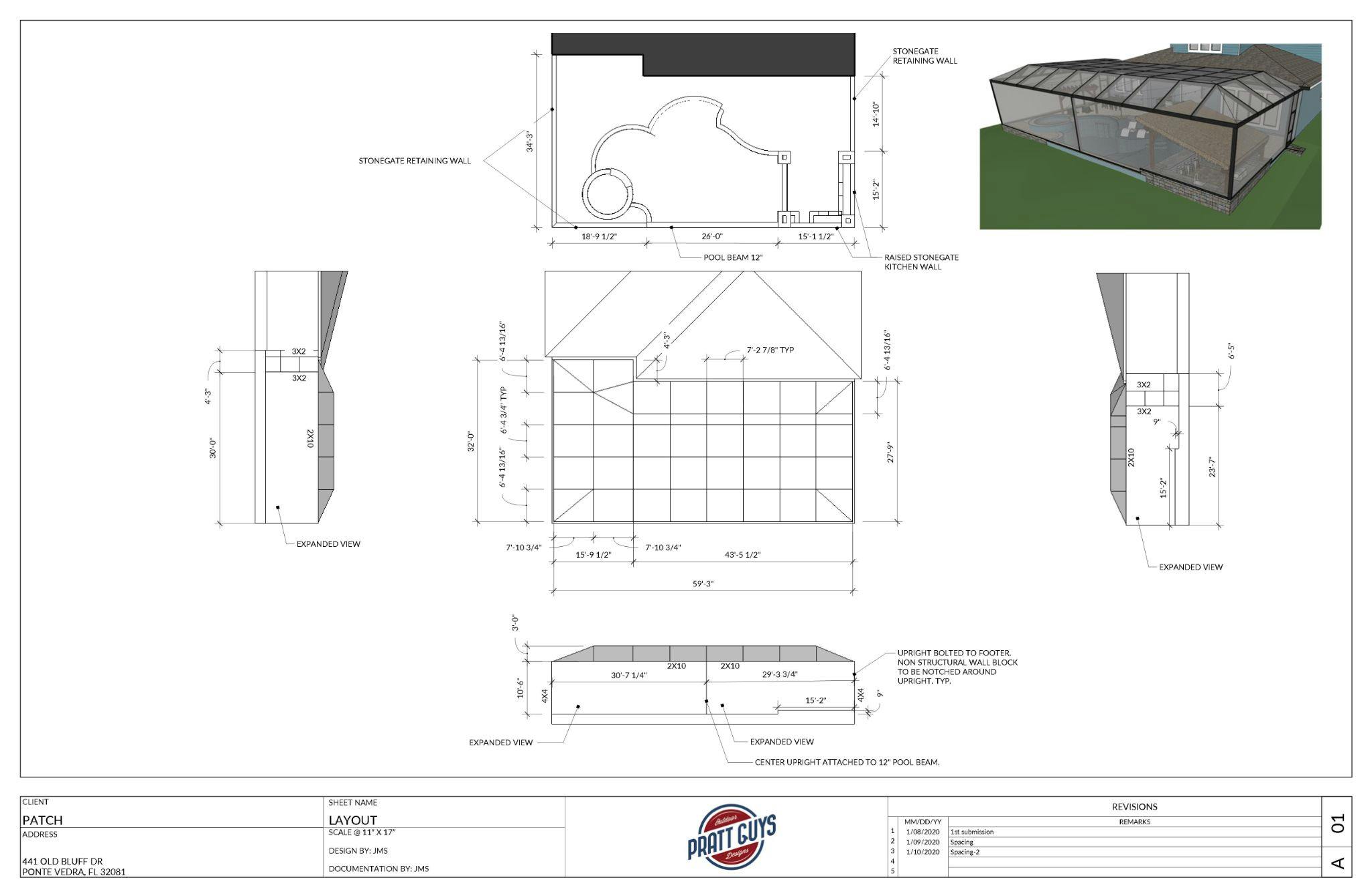

Example layout and elevation drawing

⁠

⁠

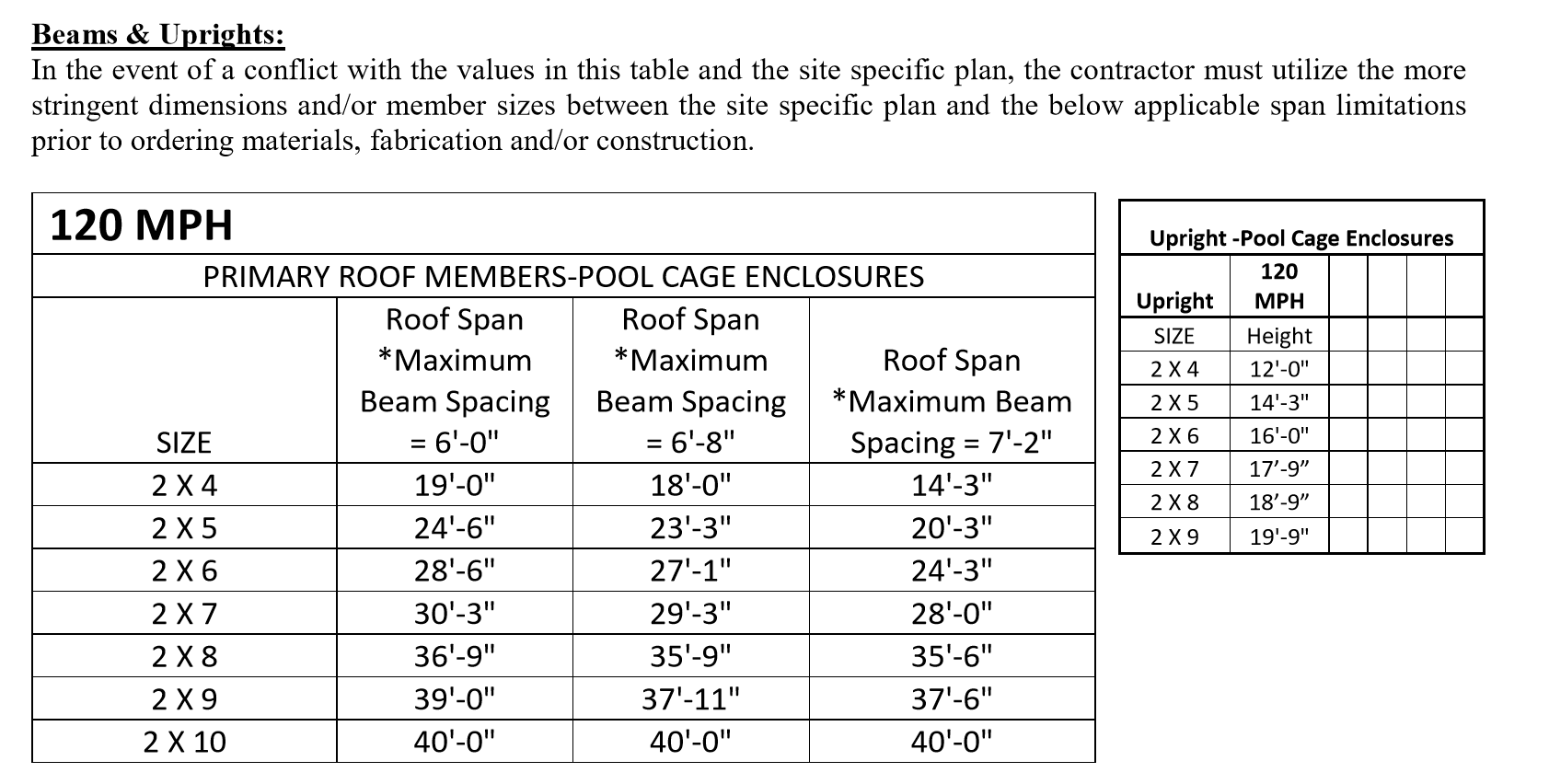

Refer to span chart for upright and beam dimensions

⁠

⁠

Span notes

Subtract 7" for gutter

Subtract 4" for outside offset

Expanded view

Per Ryan Hampton: It costs extra. But can do 60’ with a 4x8 beam. We may be able to go further with double 2x10’s or triple

⁠
