Pool Plans

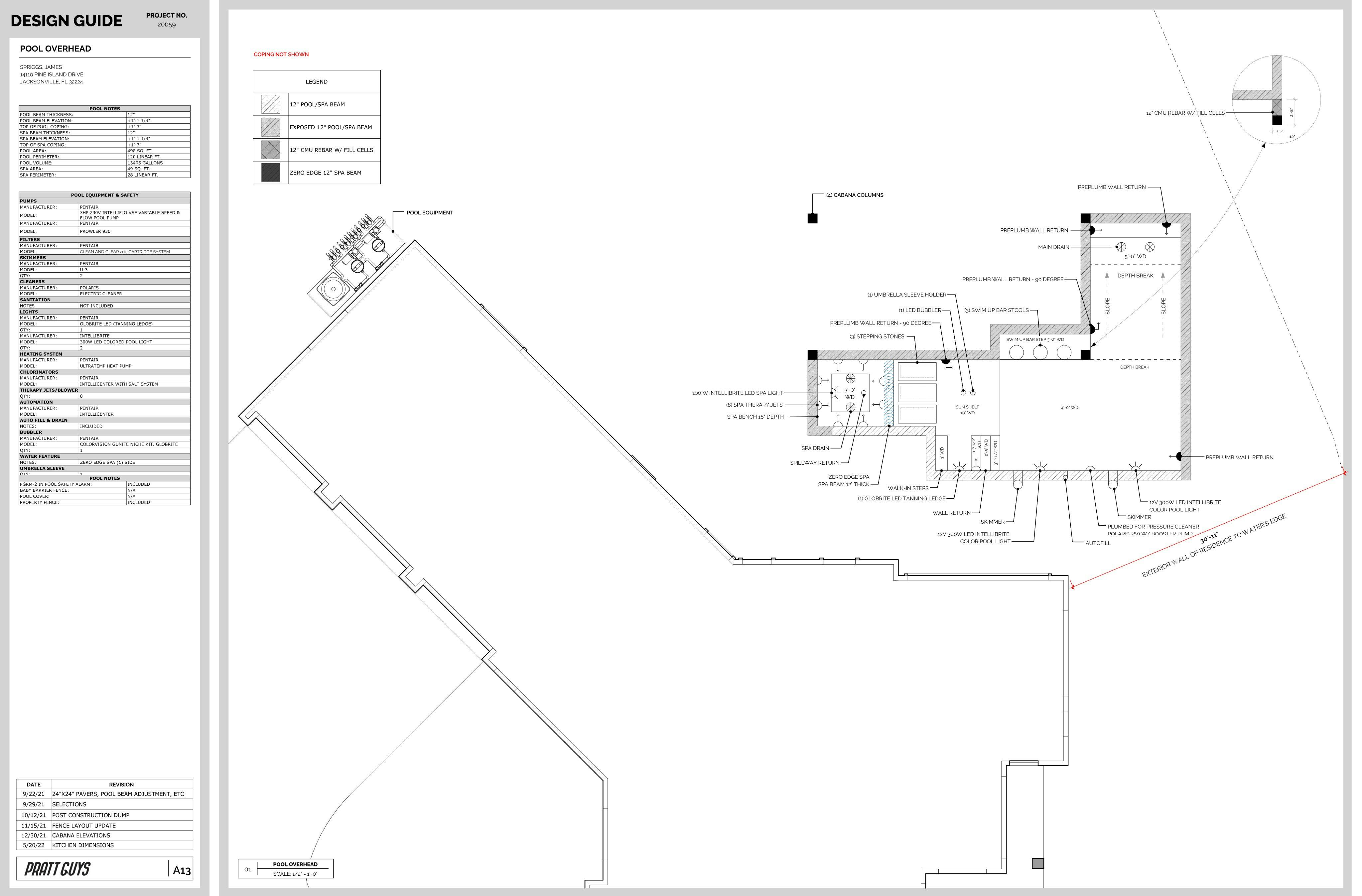

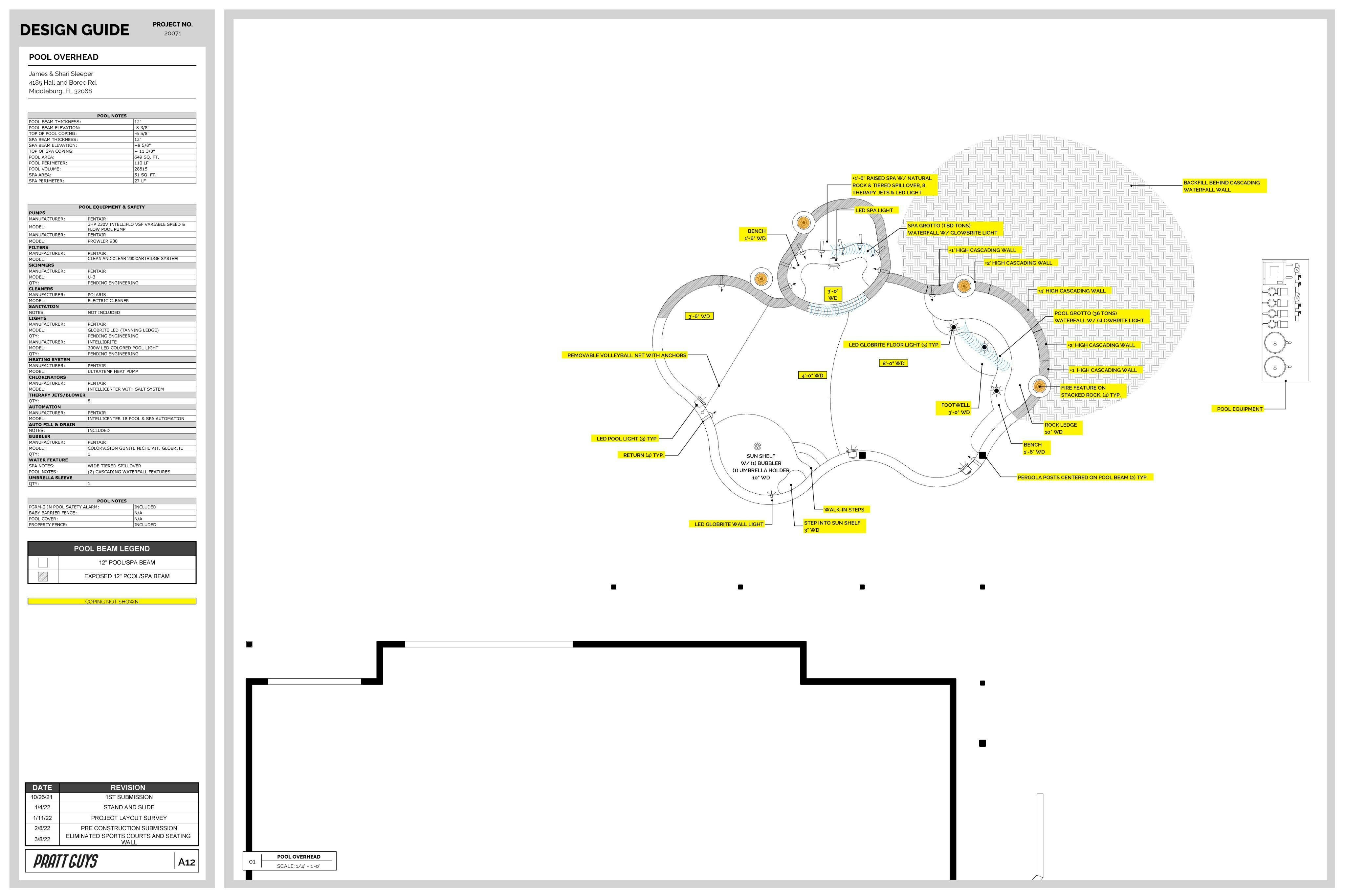

Overhead

Notes

Label the Residence

Label the Porch or Lanai

Dimensions

Dimension from the house to the pool waterline

Overall width and depth dimensions of the pool

Pool/Spa Beam Thickness

Indicate all

Pool/Spa Beam⁠

thickness

Indicate any Exposed

Pool/Spa Beam⁠

Indicate any

Zero Edge Beams⁠

Infinity Edges⁠

⁠

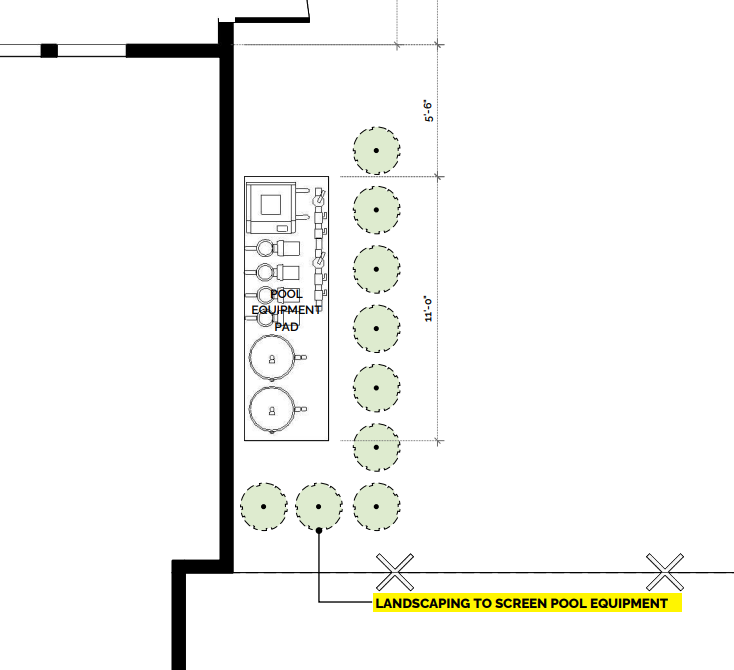

Pool Equipment Pad

Label the

Pool Equipment Pad⁠

. Show placement in relationship with the pool

Add special notes: obstructions

Gas heater exhaust needs to be minimum 5' away from windows and doors

Pad may need to be built up for slope

Concealment requirements

⁠

Pool Components

Label the Pool

Drains⁠

⁠

Label the Feature

Drains⁠

Label

Skimmers⁠

⁠

Label

Cleaners⁠

⁠

Label the

Returns⁠

Label

Seating Bench/Egress⁠

. Label depth.

Label the Pool

Lights⁠

⁠

Label Pool

Depth⁠

Label Depth Breaks

Label Walk-in

Steps⁠

. Label depth of each step.

Label Special Features

⁠

Deck Jets⁠

Sheer Descent

Waterfalls

Swim Up Bar Stools

Other

⁠

Sun Shelf

Label LED Bubblers

Label

Umbrella Sleeve⁠

location. Standard in tanning ledge. Indicate "NO Umbrella Holder" if client elects to not have an umbrella sleeve.

⁠

Spa

Label the Spa

Drains⁠

⁠

Label

Spillway/ Zero Edge/ Scuppers⁠

⁠

Label

Spillway/ Zero Edge/ Scuppers⁠

Returns

Label the Spa

Lights⁠

⁠

Label Spa

Therapy Jets⁠

⁠

Label

Spa Wall⁠

height and finish material

Label Spa

Depth⁠

⁠

Label

Spa Bench⁠

depth

⁠

Image Ref

⁠

⁠

⁠

⁠

⁠
